Folding Door Jamb Detail at Wall Partition

Materials

Steel Timber / Wood Masonry / CMU Gypsum / Drywall

Elements

About this detail

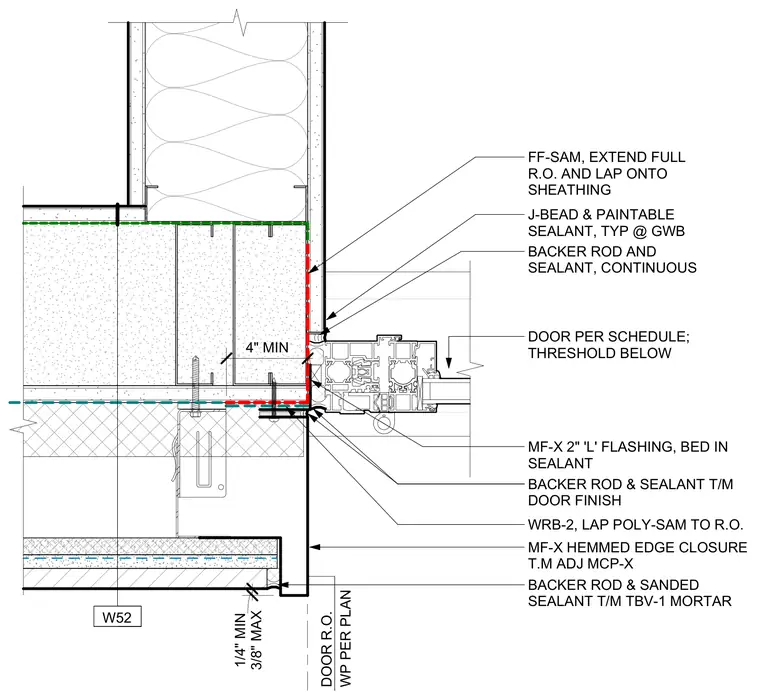

This plan detail shows the jamb condition of a folding door framed against a wall partition. The assembly incorporates a W52 hemmed edge closure, an adjustable metal closure, and a two-inch metal 'L' flashing bedded in sealant. Waterproofing details include a weather resistive barrier lapped onto the rough opening and poly-sam materials. The interior gypsum wallboard terminates with a continuous J-bead and paintable sealant, while the door frame interface is sealed with backer rod and sanded sealant against mortar.
