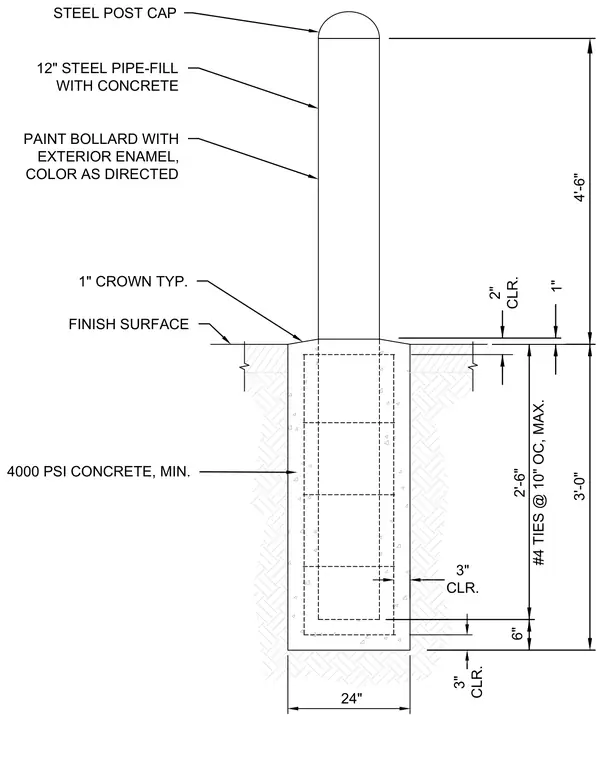

A twelve-inch steel pipe bollard is filled with four thousand pounds per square inch minimum concrete and topped with a steel post cap. The pipe extends into a twenty-four-inch wide concrete footing reinforced with number four ties at ten inches on center maximum. The finish surface features a one-inch typical crown, and the exposed steel surface is coated with exterior enamel in a color as directed.
4'-6" 1" 3'-0" STEEL POST CAP 4000 PSI CONCRETE, MIN. 24" 12" STEEL PIPE-FILL WITH CONCRETE 3" CLR. 3" CLR. 2'-6" 2" CLR. 1" CROWN TYP. FINISH SURFACE 6" PAINT BOLLARD WITH EXTERIOR ENAMEL, COLOR AS DIRECTED #4 TIES @ 10" OC, MAX.
