Architectural · A-7GK9A

Aluminum Fence Door Post Base and Curb Connection Detail

Materials

Aluminum

Elements

Columns Doors Site / Paving Anchors / Embeds

Connections

Bolted Connection Embed Plate

About this detail

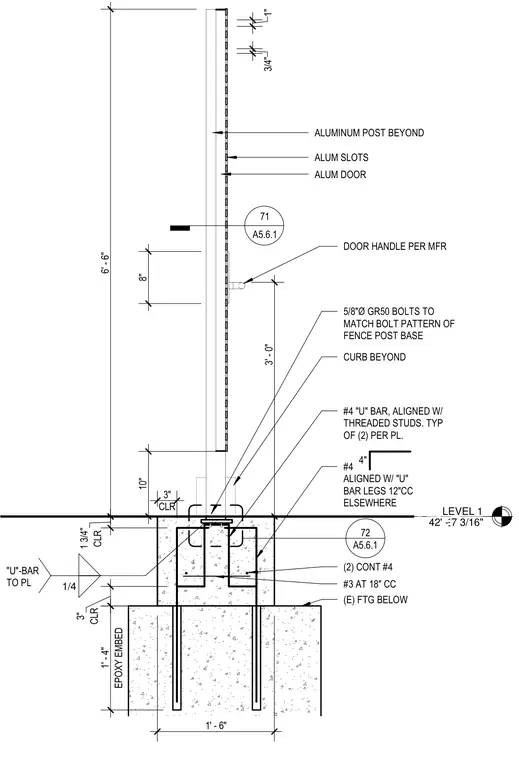

An aluminum fence door mounts over a concrete curb, featuring an aluminum post and door with slots, positioned above a concrete footing with an existing footing below. The connection utilizes five-eighths inch Grade 50 bolts matching the fence post base bolt pattern, securing to a plate. Reinforcing steel within the curb and footing includes two continuous number four bars, number three bars spaced at eighteen inches on center, and a number four U-bar aligned with the threaded studs, anchored by epoxy with a one foot four inch embedment.
