Portal Jamb Signage Ledge and Tile Detail

Materials

Steel Timber / Wood Masonry / CMU Metal (misc.)

Elements

About this detail

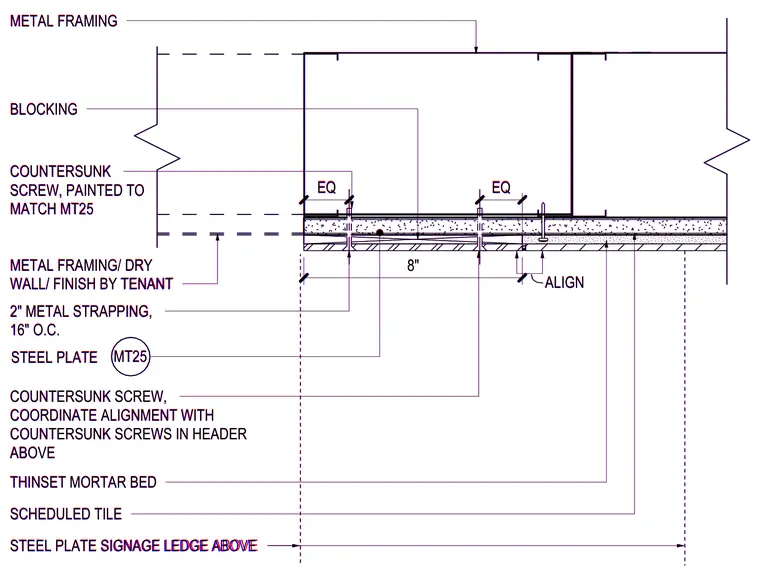

An 8-inch steel plate signage ledge is anchored below metal framing and blocking, featuring scheduled tile set in a thinset mortar bed. The assembly incorporates 2-inch metal strapping spaced at 16 inches on center, secured with painted countersunk screws matched to the MT25 plate. Countersunk screws are aligned and coordinated with the header above to maintain surface flatness. Metal framing, drywall, and final finishes are provided by the tenant.
