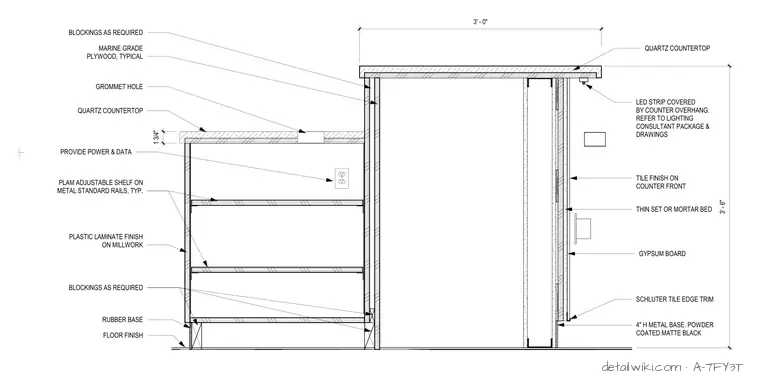

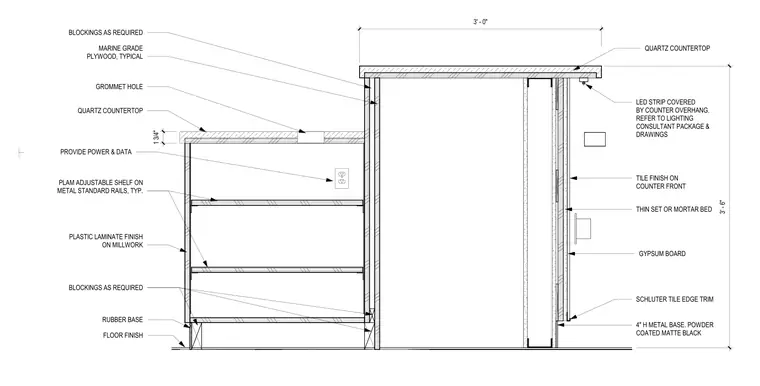

This millwork assembly consists of a reception desk with a 1 3/4 inch thick quartz countertop supported by a cabinet structure finished in plastic laminate. The interior cabinet includes adjustable plastic laminate shelves mounted on metal standard rails, with blocking provided as required. The desk front is finished with tile set in a thin-set or mortar bed over gypsum board, capped with Schluter tile edge trim and a 4-inch high powder-coated matte black metal base. The desk includes a 3-foot wide counter overhang with an integrated LED light strip, and the work surface features a grommet hole and provisions for power and data.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
