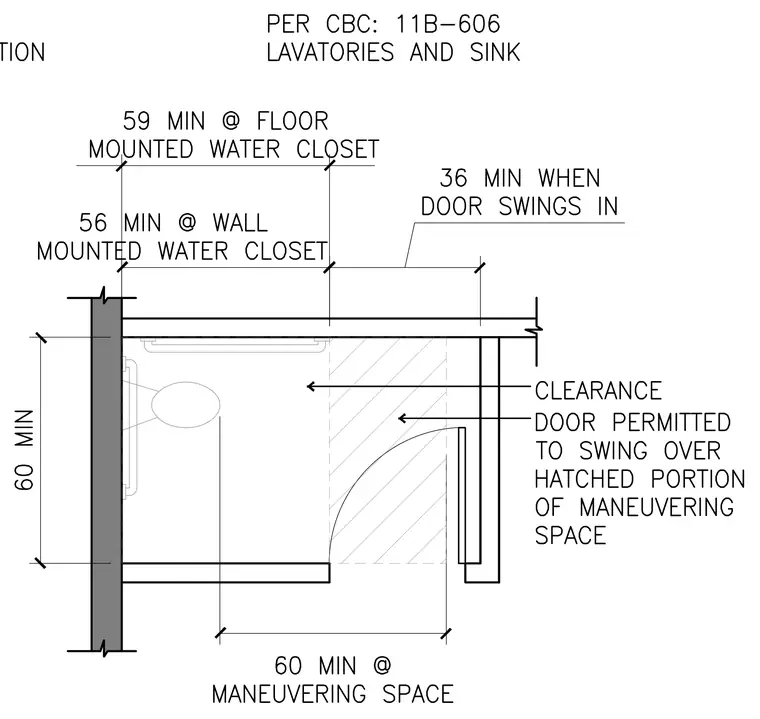

An accessible water closet stall layout provides a minimum of sixty inches of maneuvering space width and depth. Floor mounted water closets require a minimum of fifty-nine inches of clearance, while wall-mounted water closets require fifty-six inches. A door is permitted to swing over the hatched portion of the maneuvering space when the door swings in, requiring a minimum of thirty-six inches.
