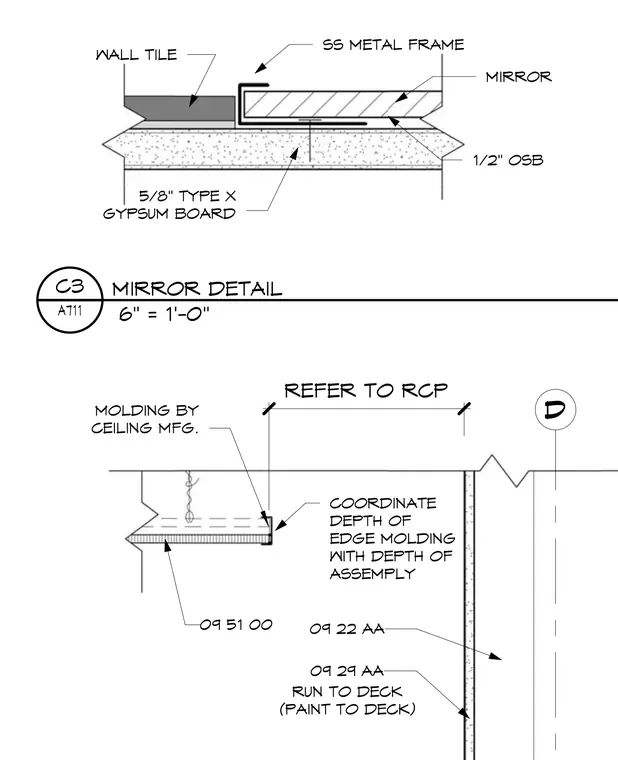

A wall mirror and tile finish mounts over a half-inch oriented strand board backing and five-eighths-inch Type X gypsum board substrate. A stainless steel metal frame secures the mirror edge adjacent to the wall tile. The assembly coordinates with a ceiling molding supplied by the ceiling manufacturer, with gypsum board framing running to the deck and painted to the deck. Depth of the edge molding must be coordinated with the overall assembly depth.
WALL TILE 5/8" TYPE X GYPSUM BOARD MIRROR 1/2" OSB SS METAL FRAME D REFER TO RCP 09 22 AA 09 29 AA 09 51 00 MOLDING BY CEILING MFG. RUN TO DECK (PAINT TO DECK) COORDINATE DEPTH OF EDGE MOLDING WITH DEPTH OF ASSEMPLY 6" = 1'-0" A711 C3 MIRROR DETAIL
