Architectural · A-7FJZM

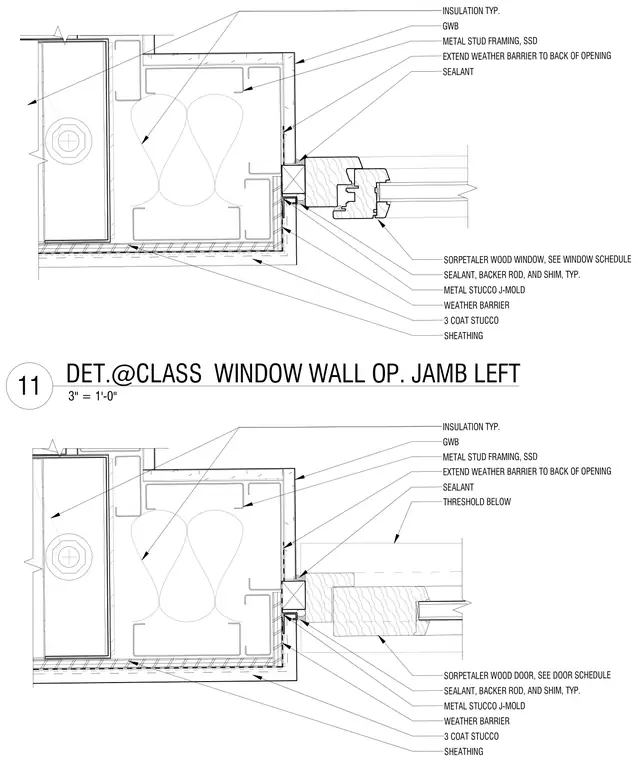

Classroom Window and Door Jamb at Stucco Wall

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Walls Doors Windows Curtain Walls Insulation Roof / Floor Openings

About this detail

The exterior wall framing consists of cold-formed metal stud framing with gypsum wallboard on the interior face and exterior sheathing covered by a weather barrier and three-coat stucco. A metal stucco J-mold terminates the stucco at the rough opening, where the weather barrier is extended back into the opening. The wood window or wood door unit is set within the rough opening and secured with shims, backer rod, and perimeter sealant. Cavity insulation is provided within the metal stud framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
