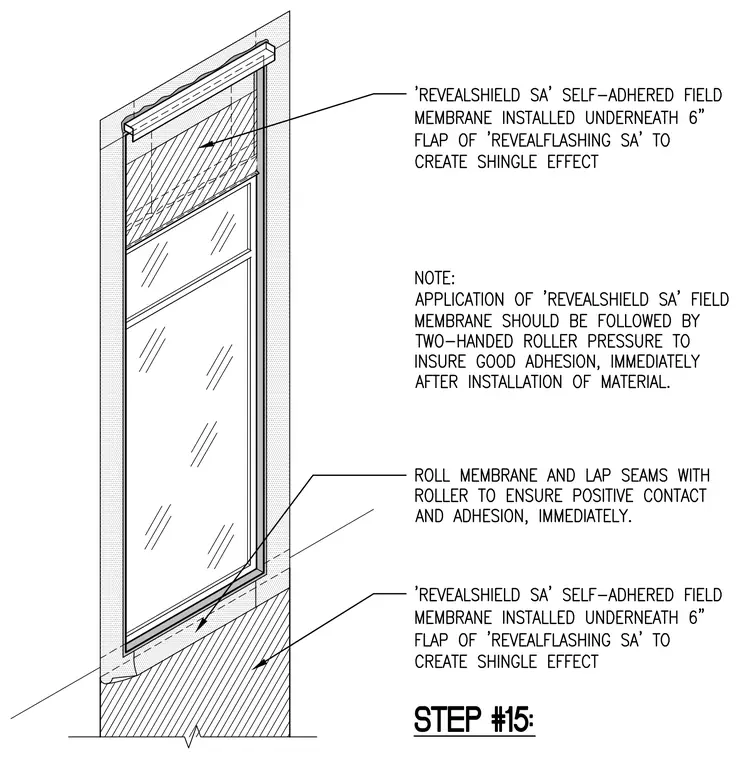

Revealshield SA self-adhered field membrane is installed underneath a six-inch flap of Revealflashing SA to create a positive shingle effect at the window head and sill. Membrane seams require rolling for positive contact and adhesion immediately following placement. Application of the self-adhered field membrane must be followed by two-handed roller pressure to ensure good adhesion.
