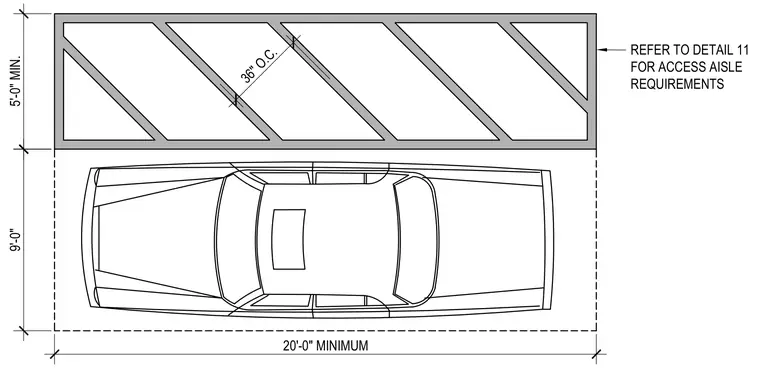

An accessible parking space layout showing a minimum width of 9'-0" and a minimum length of 20'-0" with an adjacent access aisle requiring a minimum width of 5'-0". Pavement striping is spaced at 36 inches on center across the access aisle boundaries.
9'-0" 5'-0" MIN. 20'-0" MINIMUM 36" O.C. REFER TO DETAIL 11 FOR ACCESS AISLE REQUIREMENTS
