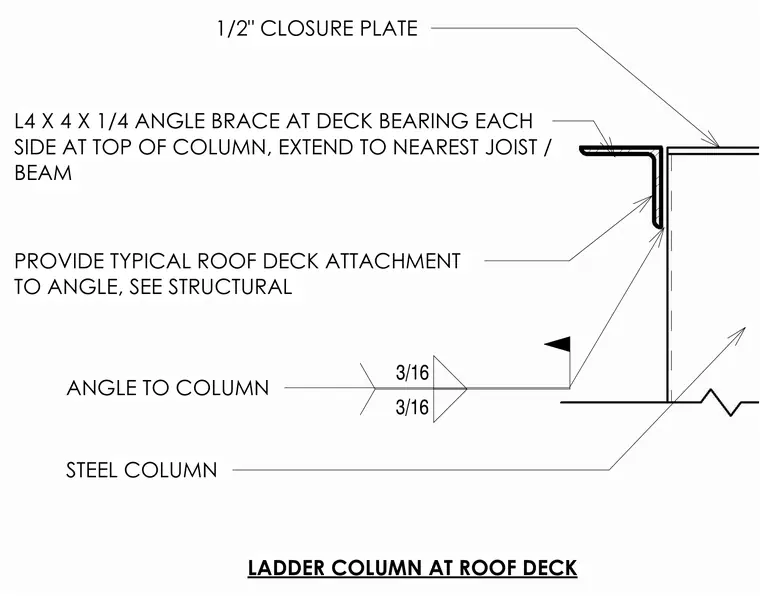

A steel angle brace measuring 4x4x1/4 inches is positioned at the deck bearing on each side at the top of the steel column and extends to the nearest joist or beam. A half-inch closure plate meets the deck, and a typical roof deck attachment connects to the angle per structural requirements. The angle is secured to the steel column with a three-sixteenths fillet weld.
3/16 3/16 ANGLE TO COLUMN STEEL COLUMN PROVIDE TYPICAL ROOF DECK ATTACHMENT TO ANGLE, SEE STRUCTURAL 1/2" CLOSURE PLATE L4 X 4 X 1/4 ANGLE BRACE AT DECK BEARING EACH SIDE AT TOP OF COLUMN, EXTEND TO NEAREST JOIST / BEAM LADDER COLUMN AT ROOF DECK
