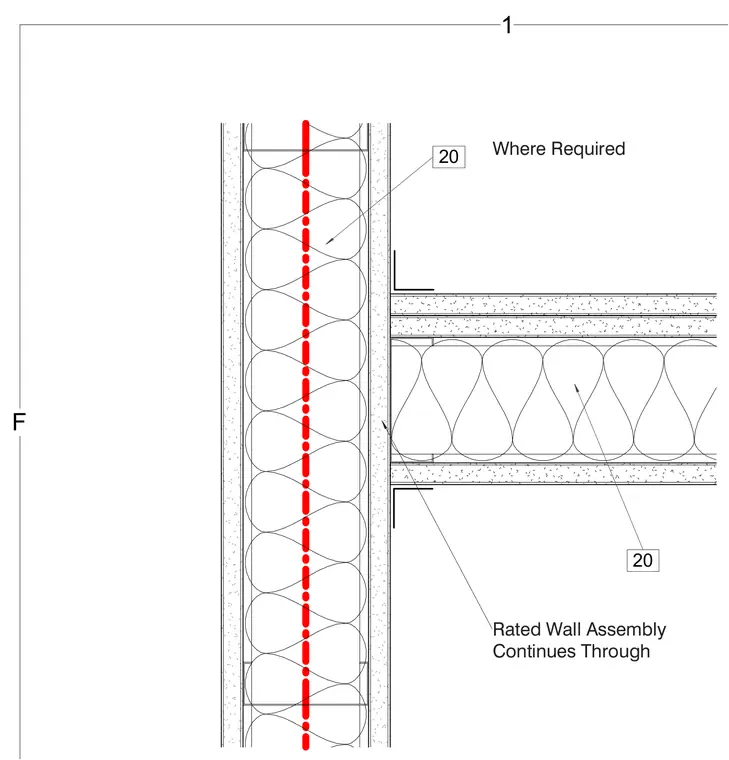

The rated wall assembly continues through the junction where required, marked by a continuous vertical fire rating line. Gypsum board partitions intersect with steel framing and sound insulation bats. Perimeter angles secure the intersecting wall board edges to the continuous rated partition assembly.
