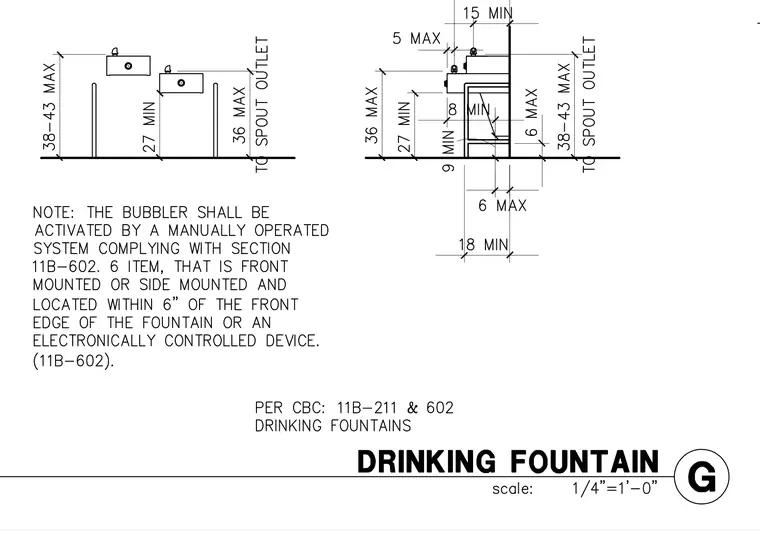

Drinking fountain installation showing front and side elevation clearances per California Building Code sections 11B-211 and 602. The spout outlet is positioned a maximum of thirty-eight to forty-three inches above the finished floor, with knee clearance maintained at a minimum of twenty-seven inches high, eight inches deep, and thirty inches wide. The bubbler requires a manually operated system complying with section 11B-602.6, front or side mounted within six inches of the front edge, or an electronically controlled device.
