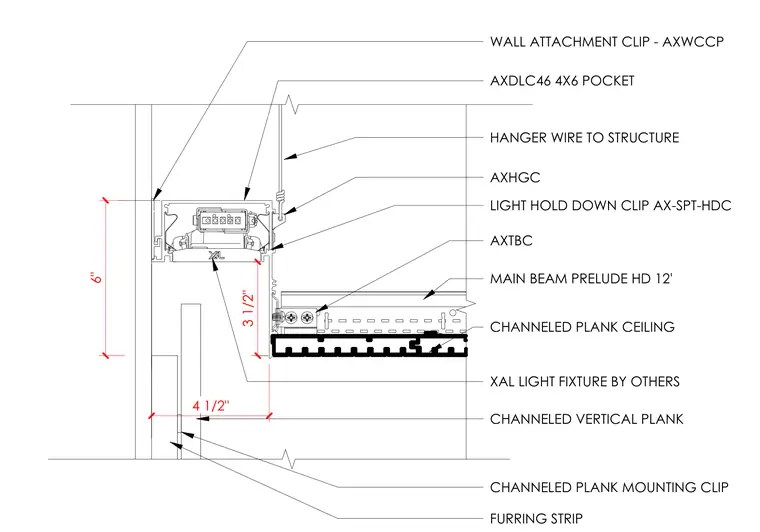

The channeled wood plank ceiling connects to the wood wall using channeled plank mounting clips and furring strips. A wall attachment clip secures the 4x6 light pocket profile to the vertical wall surface. The main beam Prelude HD suspension system supports the ceiling panels, tied back to the overhead structure with hanger wires and AXHGC clips. A light hold down clip secures the XAL light fixture within the pocket, maintaining a clean architectural junction between the ceiling and vertical wood wall.
4 1/2" 6" 3 1/2" MAIN BEAM PRELUDE HD 12' AXTBC LIGHT HOLD DOWN CLIP AX-SPT-HDC AXHGC HANGER WIRE TO STRUCTURE XAL LIGHT FIXTURE BY OTHERS AXDLC46 4X6 POCKET WALL ATTACHMENT CLIP - AXWCCP CHANNELED PLANK CEILING CHANNELED VERTICAL PLANK CHANNELED PLANK MOUNTING CLIP FURRING STRIP
