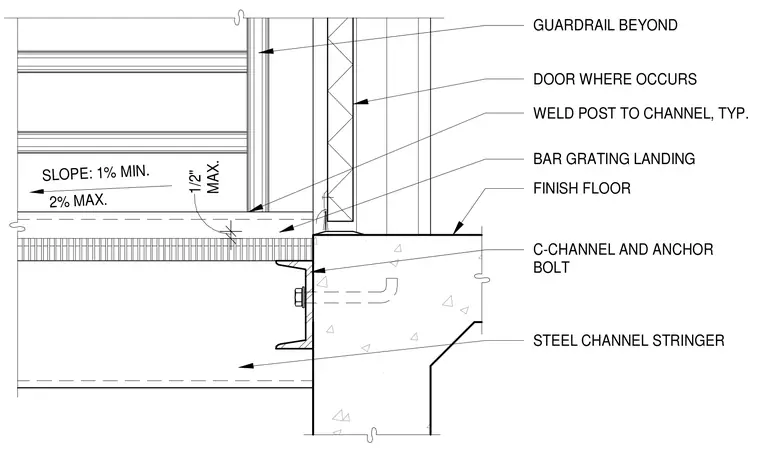

A bar grating landing is supported by a steel channel stringer connected to the floor slab via a C-channel and anchor bolt. The landing is detailed with a slope ranging from one percent minimum to two percent maximum, maintaining a maximum one-half inch clearance at the finish floor transition. A guardrail is positioned beyond the door where it occurs, with posts welded to the channel typically.
SLOPE: 1% MIN. 2% MAX. C-CHANNEL AND ANCHOR BOLT BAR GRATING LANDING GUARDRAIL BEYOND DOOR WHERE OCCURS WELD POST TO CHANNEL, TYP. STEEL CHANNEL STRINGER FINISH FLOOR 1/2" MAX.
