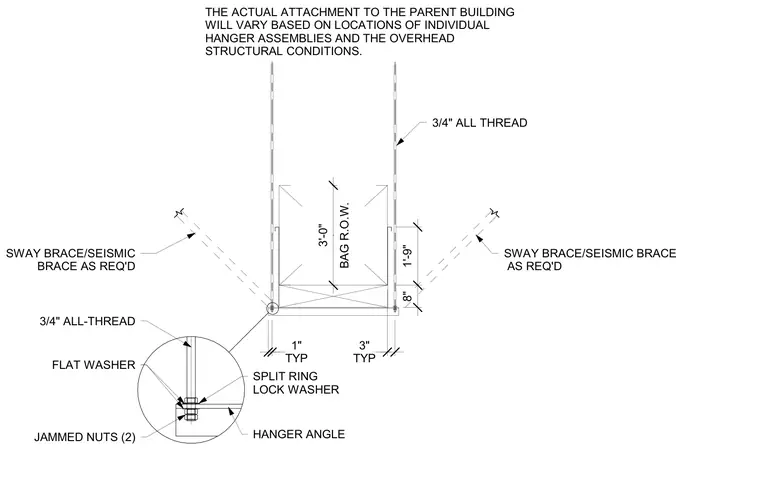

A conveyor system is suspended from overhead structural conditions using three-quarter-inch all-thread rods secured to hanger angles. Two jammed nuts, a split ring lock washer, and a flat washer secure the threaded rod at the hanger angle connection. Three-quarter-inch all-thread sway braces or seismic braces are installed as required to stabilize the assembly laterally. Actual attachment to the parent building varies depending on individual hanger assembly locations and overhead structural conditions.
8" 1'-9" BAG R.O.W. 3'-0" 3/4" ALL-THREAD FLAT WASHER SPLIT RING LOCK WASHER HANGER ANGLE JAMMED NUTS (2) TYP 3" TYP 1" SWAY BRACE/SEISMIC BRACE AS REQ'D SWAY BRACE/SEISMIC BRACE AS REQ'D 3/4" ALL THREAD THE ACTUAL ATTACHMENT TO THE PARENT BUILDING WILL VARY BASED ON LOCATIONS OF INDIVIDUAL HANGER ASSEMBLIES AND THE OVERHEAD STRUCTURAL CONDITIONS.
