Architectural · A-7EDRD

Curtain Wall Soffit at Metal Panel System

Materials

Timber / Wood Aluminum Metal (misc.)Composite

Elements

Walls Curtain Walls Facades / Cladding Ceilings Floors / Slabs Decks Waterproofing / Flashing Insulation

Connections

Shear Stud / Composite

About this detail

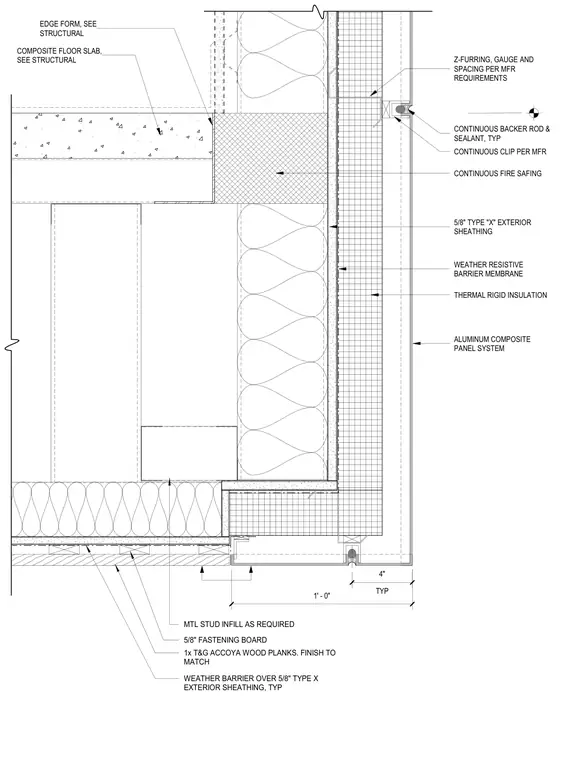

The intersection of a composite floor slab and an exterior curtain wall system features a soffit clad in wood planks. The structural concrete slab bears on an edge form, with continuous fire safing placed at the slab edge. The exterior wall assembly consists of metal stud infill, five-eighths-inch Type X exterior sheathing, a weather-resistive barrier membrane, and thermal rigid insulation behind an aluminum composite panel system. The soffit is constructed with one-by tongue-and-groove Accoya wood planks secured over a five-eighths-inch fastening board, weather barrier, and exterior sheathing. Z-furring and continuous clips are installed per the manufacturer's requirements, with joints sealed using continuous backer rod and sealant.
