An interior aluminum door frame with flush trim installs into a cold-formed steel stud header or boxed header, utilizing double studs at the jamb condition. Three layers of five-eighths inch gypsum board finish the perpendicular wall on both sides. Four-inch batt insulation fills the stud cavity where required. A door is provided as per the schedule.

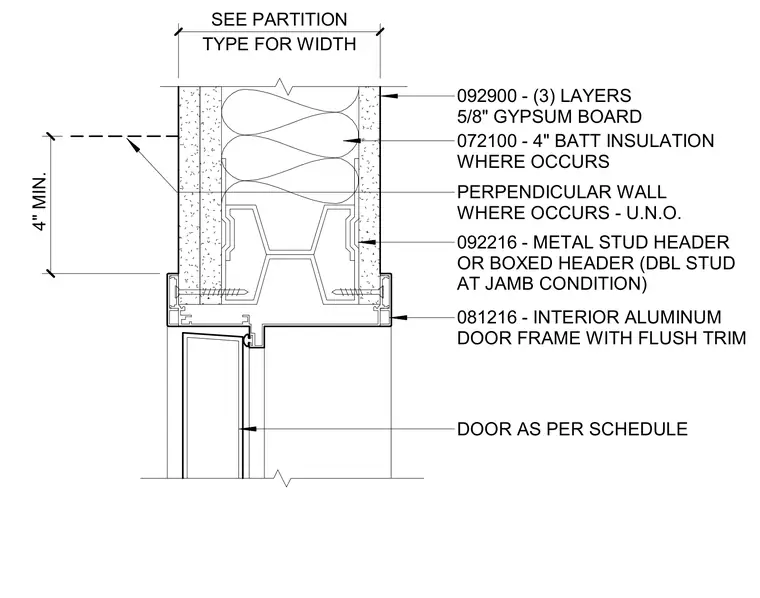

092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081216 - INTERIOR ALUMINUM DOOR FRAME WITH FLUSH TRIM 092900 - (3) LAYERS 5/8" GYPSUM BOARD PERPENDICULAR WALL WHERE OCCURS - U.N.O. DOOR AS PER SCHEDULE TYPE FOR WIDTH SEE PARTITION 072100 - 4" BATT INSULATION WHERE OCCURS 4" MIN.
