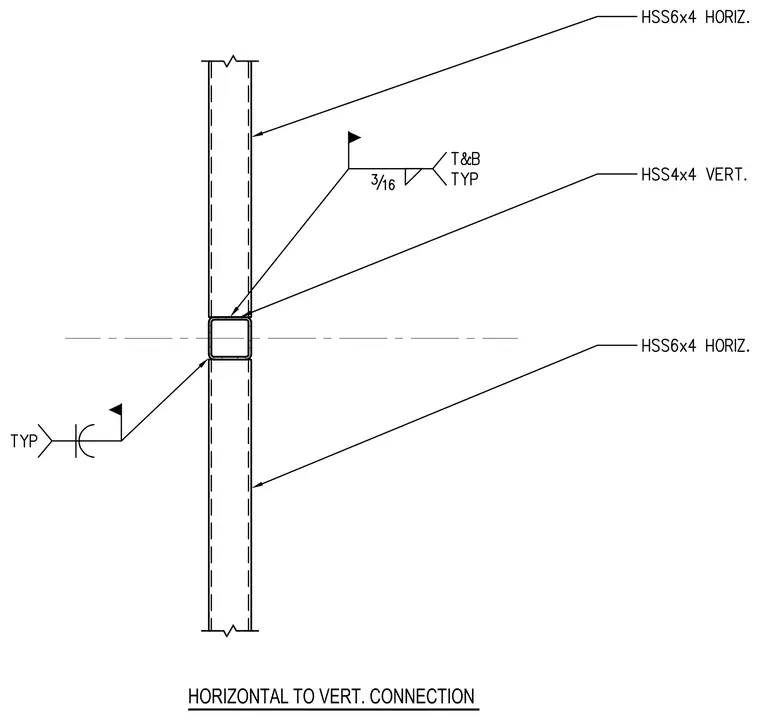

An HSS6x4 horizontal member connects to an HSS4x4 vertical member using a three-sixteenths-inch fillet weld typically applied to the top and bottom. Additional welded connections are indicated on the framing typically. All members consist of hollow structural sections.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
