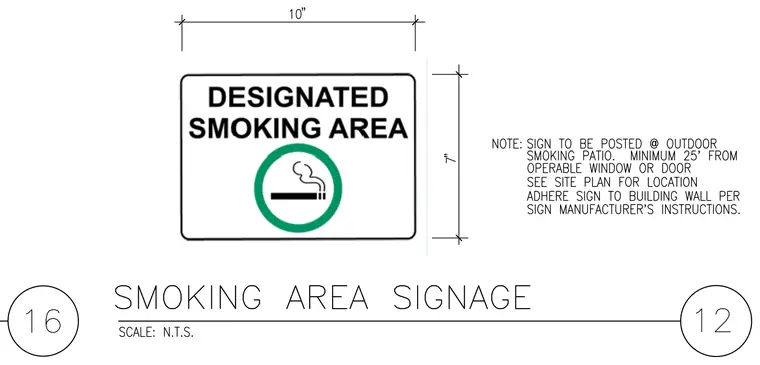

The ten-inch by seven-inch sign features the text 'DESIGNATED SMOKING AREA' and a cigarette prohibition symbol enclosed in a circle. Notes specify posting the sign at an outdoor smoking patio a minimum of twenty-five feet from operable windows or doors, referencing the site plan for location, and adhering the sign to the building wall per the manufacturer's instructions.
