An extruded pre-finished aluminum screen mullion connects to a unitized aluminum curtain wall system incorporating nine-sixteenth inch monolithic laminated glass designated as GL-6. Pre-finished aluminum components E-MTL-01 and E-MTL-02 form the profile framing assemblies.

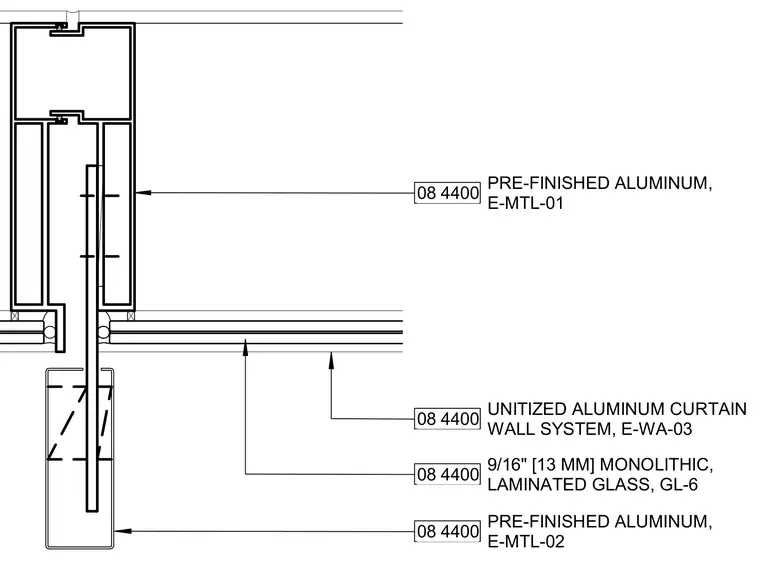

08 4400 UNITIZED ALUMINUM CURTAIN WALL SYSTEM, E-WA-03 08 4400 9/16" [13 MM] MONOLITHIC, LAMINATED GLASS, GL-6 08 4400 PRE-FINISHED ALUMINUM, E-MTL-02 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01
