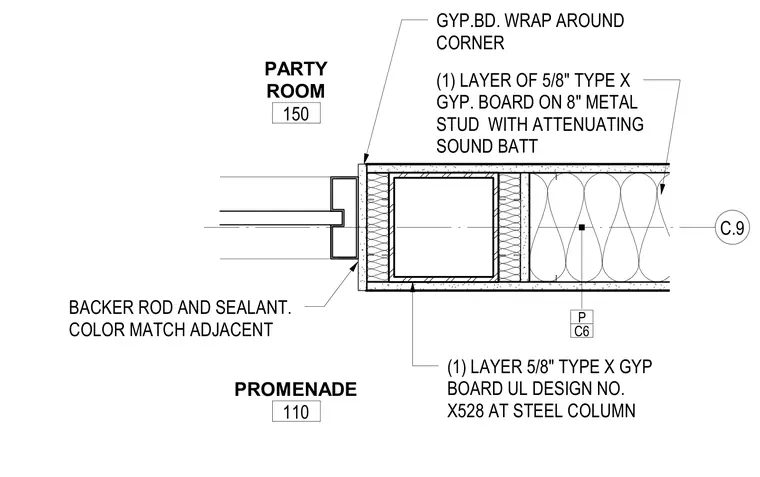

An eight-inch metal stud wall assembly with sound-attenuating batt insulation terminates at a structural steel column enclosure. One layer of five-eighths-inch Type X gypsum board wraps around the corner with a backer rod and color-matched sealant joint. The steel column is fire-rated with one layer of five-eighths-inch Type X gypsum board complying with UL Design No. X528.
C.9 PROMENADE 110 PARTY ROOM 150 (1) LAYER OF 5/8" TYPE X GYP. BOARD ON 8" METAL STUD WITH ATTENUATING SOUND BATT GYP.BD. WRAP AROUND CORNER BACKER ROD AND SEALANT. COLOR MATCH ADJACENT C6 P (1) LAYER 5/8" TYPE X GYP BOARD UL DESIGN NO. X528 AT STEEL COLUMN
