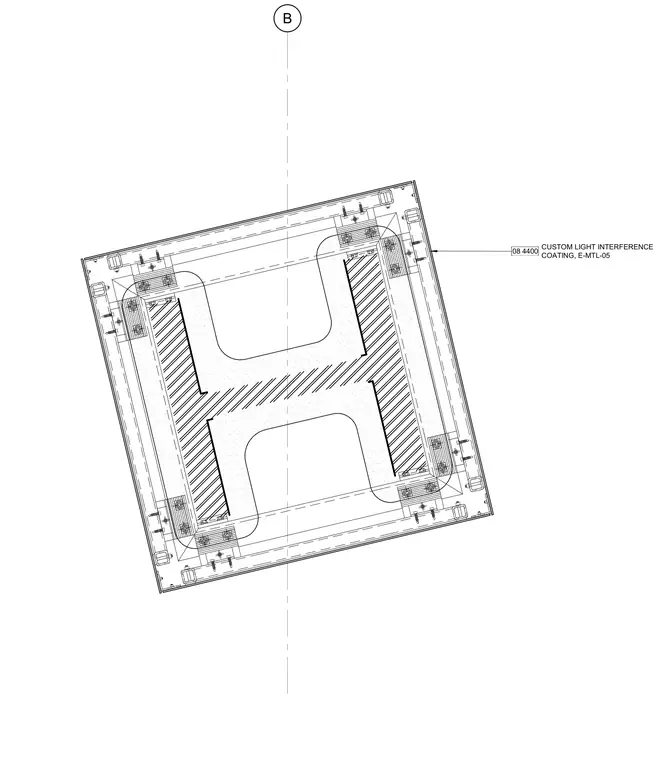

A structural H-column is wrapped with a custom exterior metal panel enclosure. The assembly is finished with a custom light interference coating specified as E-MTL-05. Mechanical fasteners and internal attachment brackets secure the panel framing around the column profile.
