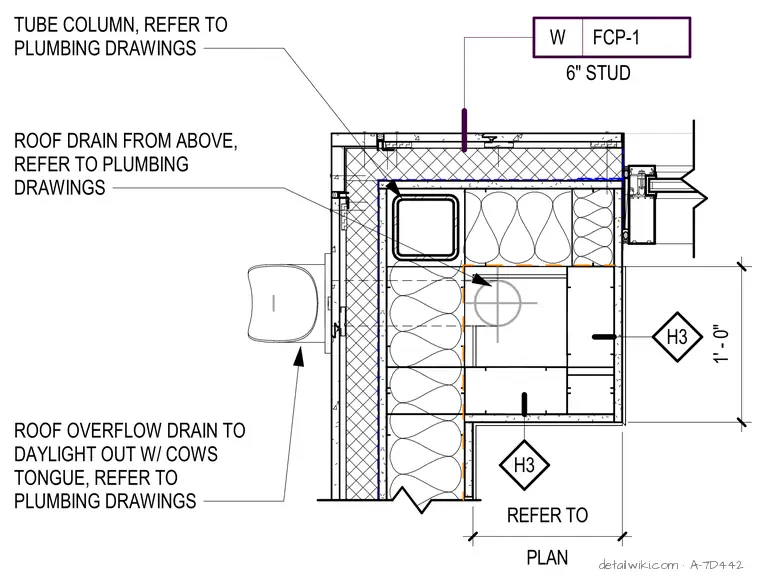

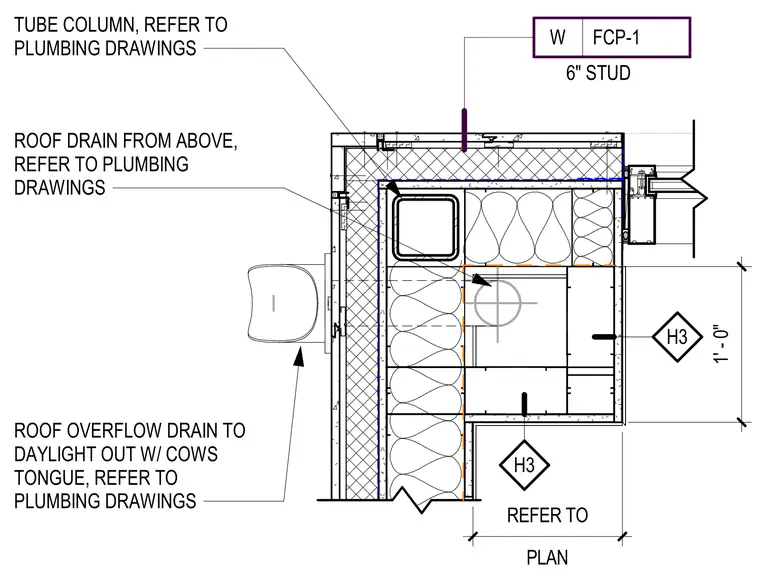

Six-inch cold-formed steel studs, designated as FCP-1, frame the pipe enclosure. The enclosure houses a tube column and plumbing components, including a roof drain and a roof overflow drain with a cow's tongue outlet, coordinated with the plumbing drawings. Wallboard and insulation finish the assembly, which is positioned adjacent to a glazed entrance system. The enclosure footprint measures one foot zero inches, with further structural and architectural references provided by detail callouts.
