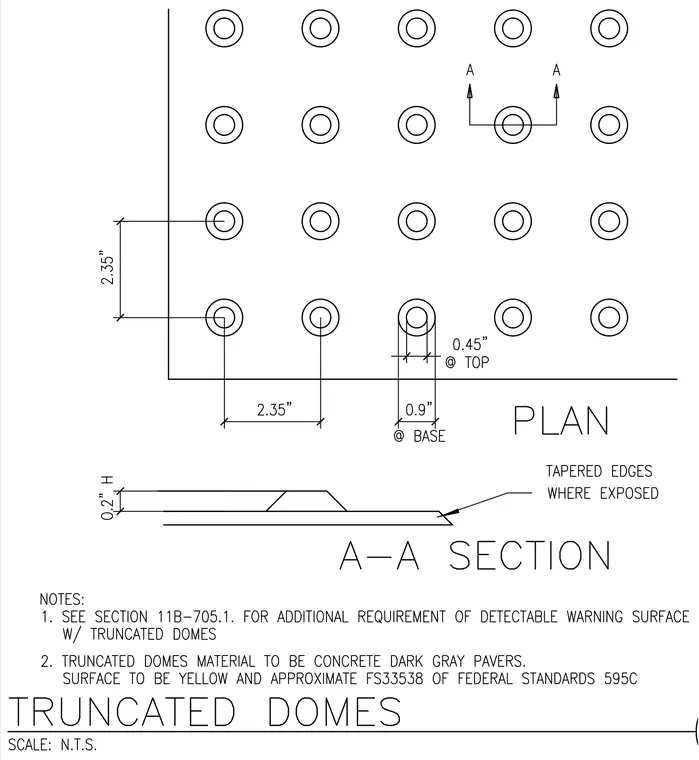

Detectable warning surface featuring truncated domes arranged in a grid pattern with 2.35-inch center-to-center spacing. Individual domes measure 0.45 inches in diameter at the top and 0.9 inches at the base, with an overall height of 0.2 inches. The assembly includes tapered edges where exposed. Notes specify compliance with Section 11B-705.1 for detectable warning surfaces with truncated domes. The material is specified as concrete dark gray pavers with a yellow surface approximating FS33538 of Federal Standards 595C.
