Architectural · A-7CPRF

Solid Core

About this detail

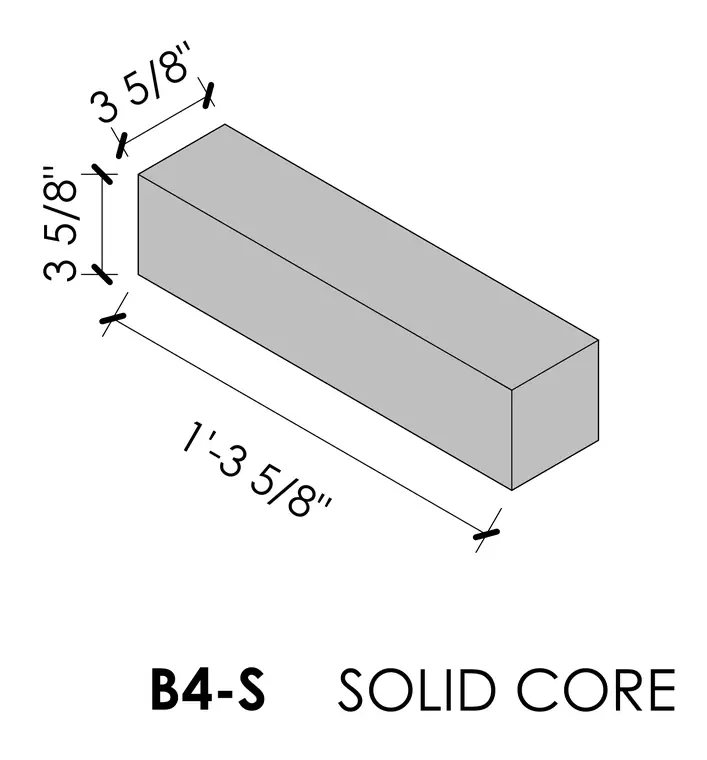

The solid core component B4-S measures 3-5/8 inches wide, 3-5/8 inches high, and 1 foot 3-5/8 inches long.

3 5/8" 3 5/8" B4-S 1'-3 5/8" SOLID CORE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
