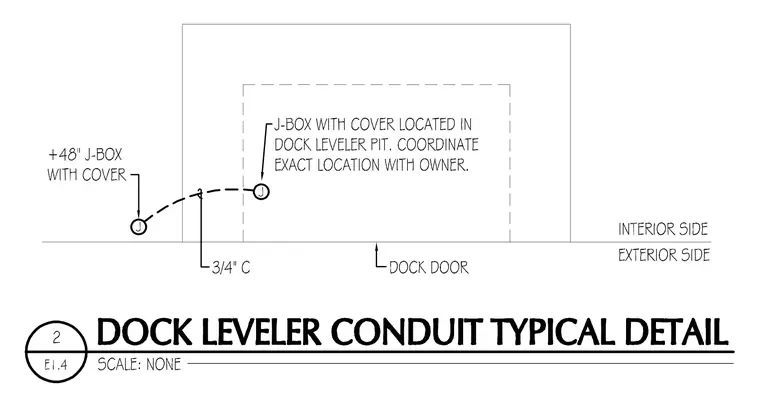

A junction box with cover is located inside the dock leveler pit, with its exact placement coordinated with the owner. A three-quarter-inch conduit connects this pit junction box to another junction box with a cover set at plus forty-eight inches on the interior side of the dock door.
