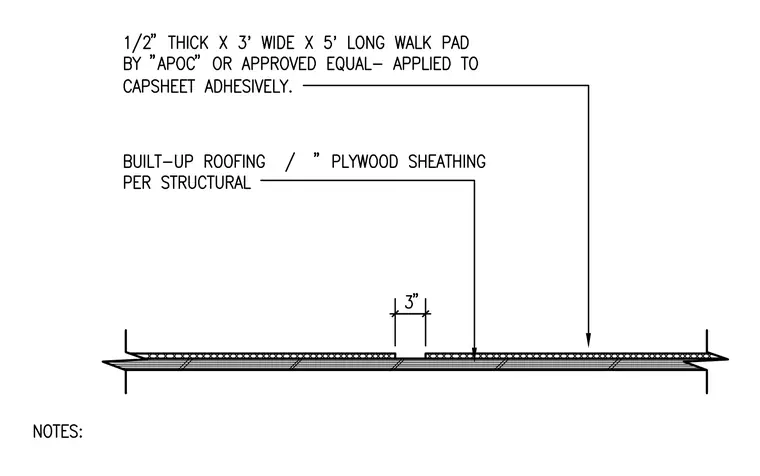

A half-inch thick by three feet wide by five feet long walk pad by APOC or an approved equal is applied adhesively to the built-up roofing capsheet. The built-up roofing is installed over plywood sheathing sized per structural requirements, with a three-inch gap shown between assembly sections.
