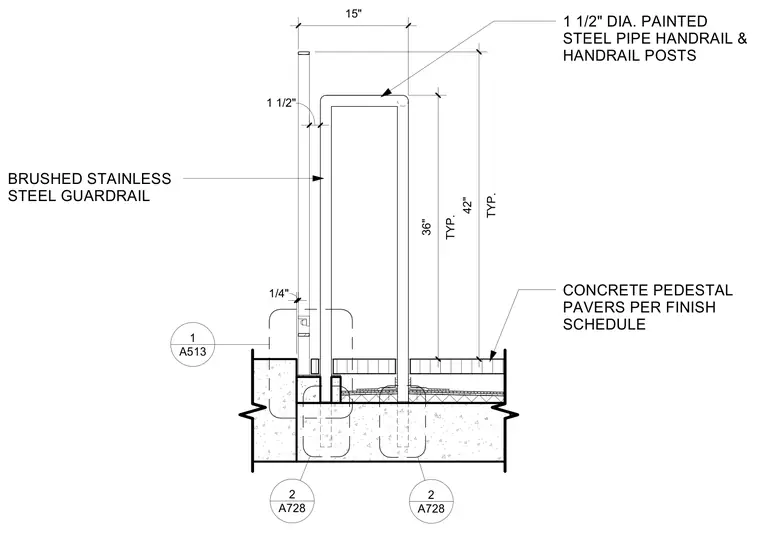

A 1 1/2-inch diameter painted steel pipe handrail and handrail posts are anchored into a concrete substrate. A brushed stainless steel guardrail is positioned alongside the assembly. Concrete pedestal pavers are installed per the finish schedule around the base plates and mountings. The assembly maintains a typical 36-inch handrail height and 42-inch guardrail height with a 15-inch spacing offset.
1 1/2" DIA. PAINTED STEEL PIPE HANDRAIL & HANDRAIL POSTS A728 2 1/4" 1 1/2" A513 1 A728 2 TYP. 36" 15" BRUSHED STAINLESS STEEL GUARDRAIL CONCRETE PEDESTAL PAVERS PER FINISH SCHEDULE TYP. 42"
