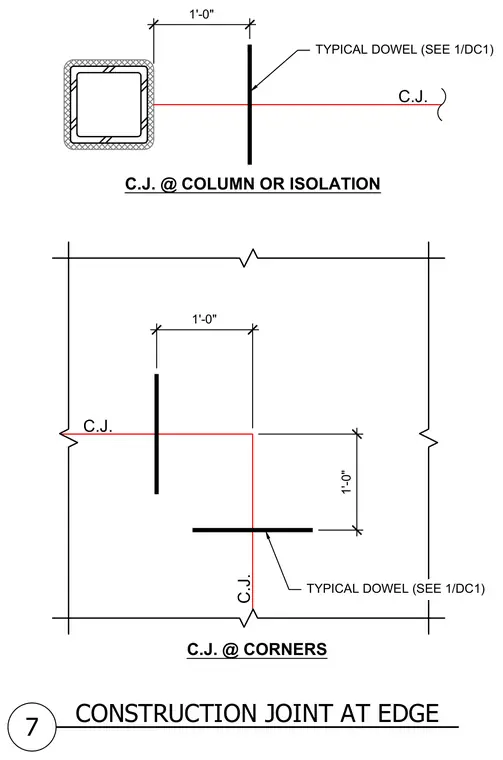

Construction joints are detailed with typical dowels placed one foot away from column blockouts and slab corners. The dowel reinforcement aligns across the joint per the reference detail. Red lines indicate the joint location relative to structural grid lines and slab edges.
C.J. @ COLUMN OR ISOLATION C.J. @ CORNERS C.J. C.J. C.J. CONSTRUCTION JOINT AT EDGE 7 1'-0" 1'-0" 1'-0" TYPICAL DOWEL (SEE 1/DC1) TYPICAL DOWEL (SEE 1/DC1)
