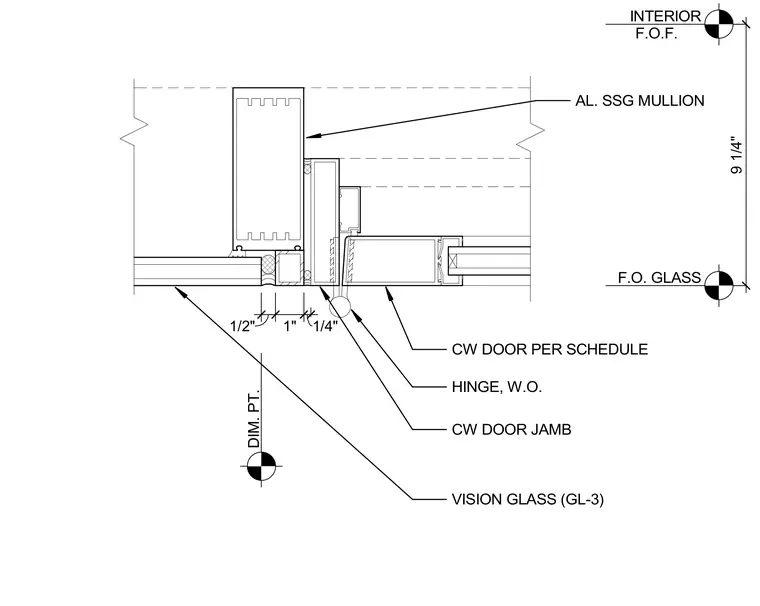

A plan detail shows the jamb condition for a storefront or curtain wall door system framed by an aluminum structural silicone glazed mullion. A curtain wall door specified per schedule is hung using a hinge attached to the door jamb. Adjacent vision glass type GL-3 is secured with gaskets alongside the framing members. Dimensional references establish the offset from the interior face of finish to the face of glass.
DIM. PT. F.O. GLASS INTERIOR F.O.F. CW DOOR JAMB 9 1/4" CW DOOR PER SCHEDULE VISION GLASS (GL-3) AL. SSG MULLION 1/2" 1" 1/4" HINGE, W.O.
