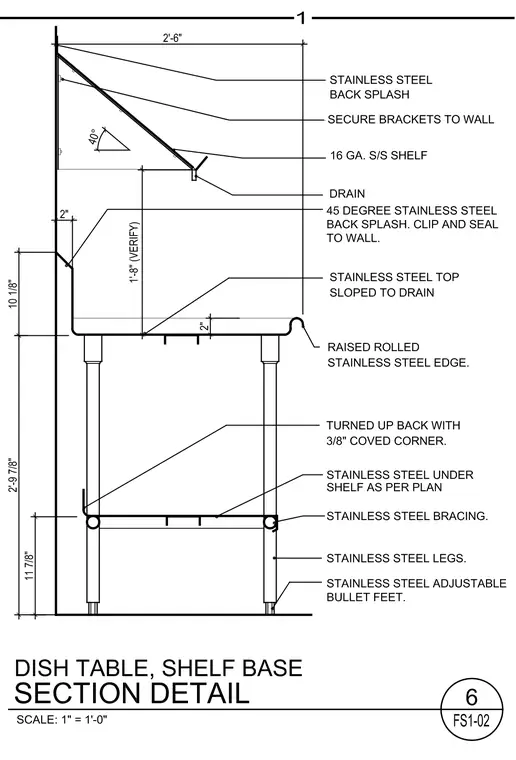

A stainless steel dish table features a top sloped toward a drain with a raised rolled edge and a two-inch vertical splash guard at the wall. The assembly is supported by stainless steel legs equipped with adjustable bullet feet and connected by stainless steel bracing. A stainless steel under-shelf is positioned per plan and features a turned-up back with a three-eighths-inch coved corner against the wall. Above the table, a sixteen-gauge stainless steel shelf with a forty-degree slope and a drain is secured to the wall with brackets and backed by a stainless steel splash panel clipped and sealed to the wall.
