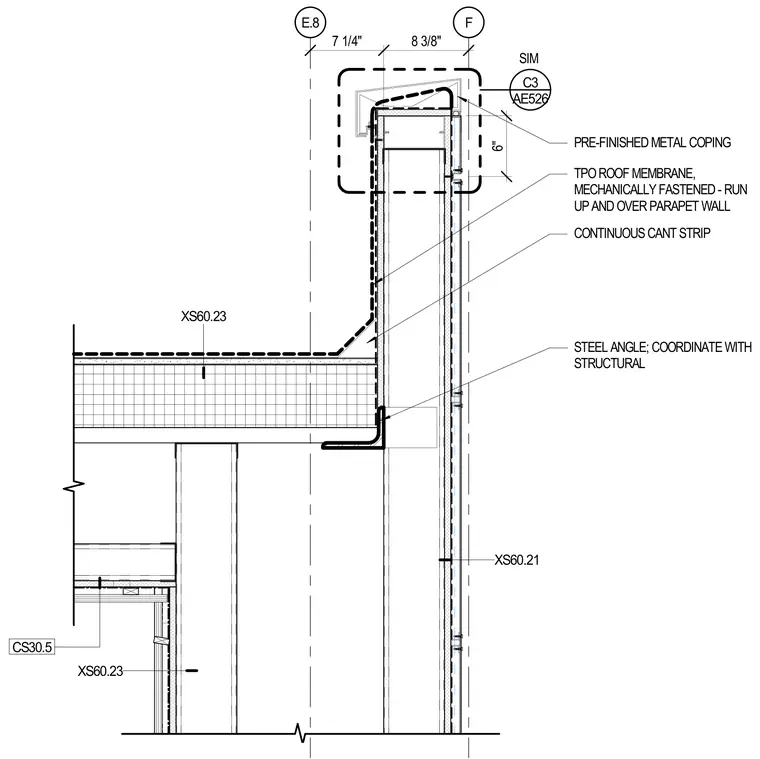

A pre-finished metal coping caps the top of the parapet wall, seated over a mechanically fastened thermoplastic polyolefin roof membrane that extends up and over the parapet wall by 6 inches. A continuous cant strip transitions the membrane from the horizontal roof deck to the vertical parapet surface. A steel angle coordinates with the structural framing below the roof level to support the assembly.
F E.8 AE526 C3 SIM XS60.21 XS60.23 CS30.5 XS60.23 8 3/8" 7 1/4" PRE-FINISHED METAL COPING CONTINUOUS CANT STRIP STEEL ANGLE; COORDINATE WITH STRUCTURAL TPO ROOF MEMBRANE, MECHANICALLY FASTENED - RUN UP AND OVER PARAPET WALL 6"
