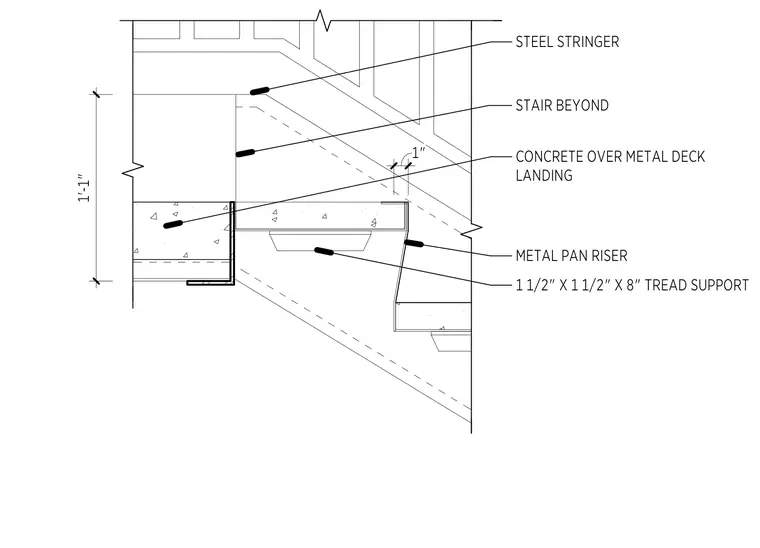

Metal pan risers with 1-1/2 inch by 1-1/2 inch by 8 inch tread supports frame into the structural steel stringer at the stair landing. A concrete slab poured over metal deck forms the landing with a 1 inch clearance dimension shown at the transition. Additional stair stringers and runs continue beyond the connection.
1" 1'-1" 1 1/2" X 1 1/2" X 8" TREAD SUPPORT METAL PAN RISER STEEL STRINGER STAIR BEYOND CONCRETE OVER METAL DECK LANDING
