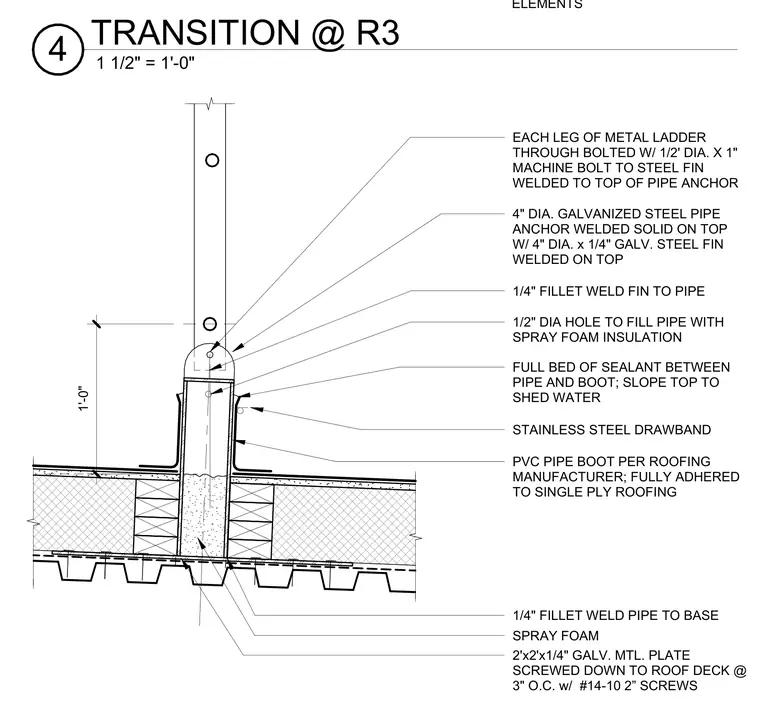

A four-inch diameter galvanized steel pipe anchor is welded solid on top with a four-inch diameter by one-quarter-inch galvanized steel fin using a one-quarter-inch fillet weld. The pipe anchor is welded with a one-quarter-inch fillet weld to a two-foot by two-foot by one-quarter-inch galvanized metal base plate, which is screwed down to the roof deck at three inches on center with number fourteen by two-inch screws. Each leg of the metal ladder is through-bolted with a one-half-inch diameter by one-inch machine bolt to the steel fin. The interior of the pipe is filled with spray foam insulation through a one-half-inch diameter hole. A PVC pipe boot is fully adhered to the single-ply roofing and secured with a stainless steel drawband, featuring a full bed of sealant between the pipe and boot with the top sloped to shed water.
FULL BED OF SEALANT BETWEEN PIPE AND BOOT; SLOPE TOP TO SHED WATER STAINLESS STEEL DRAWBAND PVC PIPE BOOT PER ROOFING MANUFACTURER; FULLY ADHERED TO SINGLE PLY ROOFING 4" DIA. GALVANIZED STEEL PIPE ANCHOR WELDED SOLID ON TOP W/ 4" DIA. x 1/4" GALV. STEEL FIN WELDED ON TOP 1/2" DIA HOLE TO FILL PIPE WITH SPRAY FOAM INSULATION 2'x2'x1/4" GALV. MTL. PLATE SCREWED DOWN TO ROOF DECK @ 3" O.C. w/ #14-10 2” SCREWS EACH LEG OF METAL LADDER THROUGH BOLTED W/ 1/2' DIA. X 1" MACHINE BOLT TO STEEL FIN WELDED TO TOP OF PIPE ANCHOR 1'-0" 1/4" FILLET WELD PIPE TO BASE 1/4" FILLET WELD FIN TO PIPE SPRAY FOAM ELEMENTS 1 1/2" = 1'-0" 4 TRANSITION @ R3
