Shaft Wall Head and Base Connection at CLT Floor

Materials

Elements

About this detail

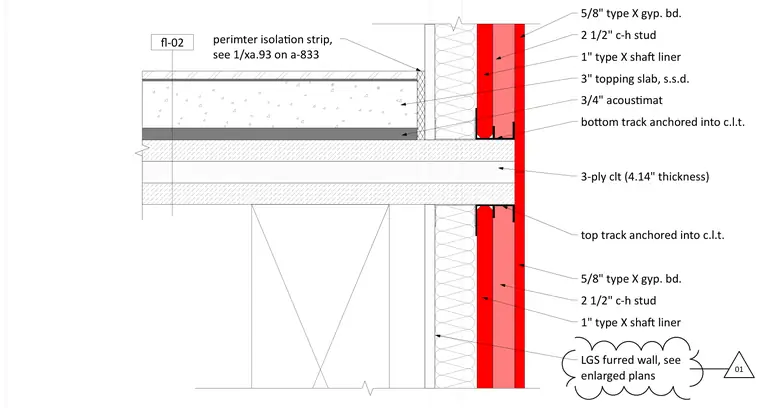

A shaft wall assembly meets a cross-laminated timber floor slab at its head and base connection. The assembly incorporates a three-ply cross-laminated timber floor of four and one-fourteenth inches thickness, supporting a three-quarter-inch acoustical mat below a three-inch topping slab. The shaft wall framing consists of two-and-one-half-inch C-H studs and one-inch type X shaft liner, faced with five-eighths-inch type X gypsum board on the exterior side. Both top and bottom tracks are anchored directly into the cross-laminated timber floor panels. A perimeter isolation strip is provided at the slab edge, and an adjacent light gauge steel furred wall assembly is integrated per the enlarged plans.
