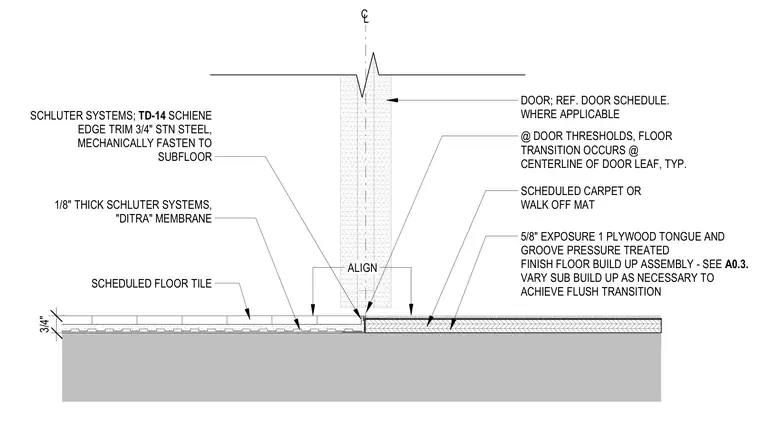

A flush flooring transition between scheduled floor tile and scheduled carpet or a walk-off mat occurs at the centerline of the door leaf. The tile assembly features a one-eighth-inch-thick Schluter Systems Ditra membrane beneath the tile, terminated with a three-quarter-inch stainless steel Schluter Systems TD-14 Schiene edge trim mechanically fastened to the subfloor. The opposite side comprises a five-eighths-inch Exposure 1 tongue and groove pressure-treated plywood finish floor build-up assembly. The sub-build-up is varied as necessary to achieve a flush transition at the threshold.
DOOR; REF. DOOR SCHEDULE. WHERE APPLICABLE SCHEDULED FLOOR TILE SCHEDULED CARPET OR WALK OFF MAT 1/8" THICK SCHLUTER SYSTEMS, "DITRA" MEMBRANE SCHLUTER SYSTEMS; TD-14 SCHIENE EDGE TRIM 3/4" STN STEEL, MECHANICALLY FASTEN TO SUBFLOOR @ DOOR THRESHOLDS, FLOOR TRANSITION OCCURS @ CENTERLINE OF DOOR LEAF, TYP. C L 5/8" EXPOSURE 1 PLYWOOD TONGUE AND GROOVE PRESSURE TREATED FINISH FLOOR BUILD UP ASSEMBLY - SEE A0.3. VARY SUB BUILD UP AS NECESSARY TO ACHIEVE FLUSH TRANSITION 3/4" ALIGN
