Architectural · A-7BATG

Fire Command Center Door Jamb Detail

Materials

Elements

About this detail

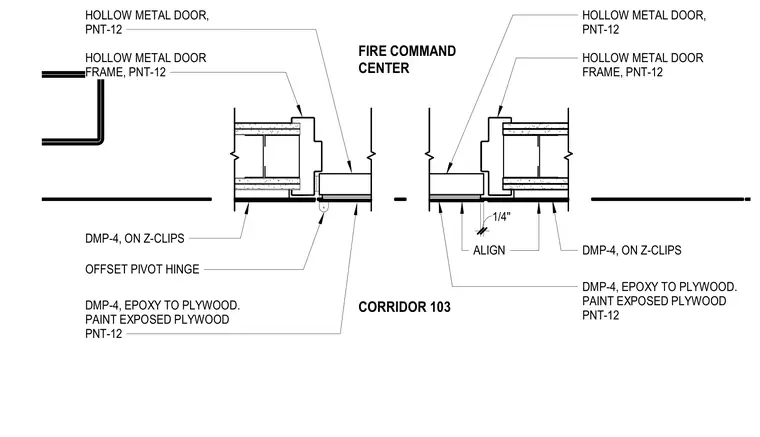

This plan detail shows a hollow metal door frame set within a wall assembly adjacent to the Fire Command Center corridor. The hollow metal door is hung with an offset pivot hinge and finished with PNT-12 paint. Wall panels designated as DMP-4 are mounted on Z-clips over a plywood substrate, with exposed plywood surfaces painted in PNT-12 and adhered with epoxy.
