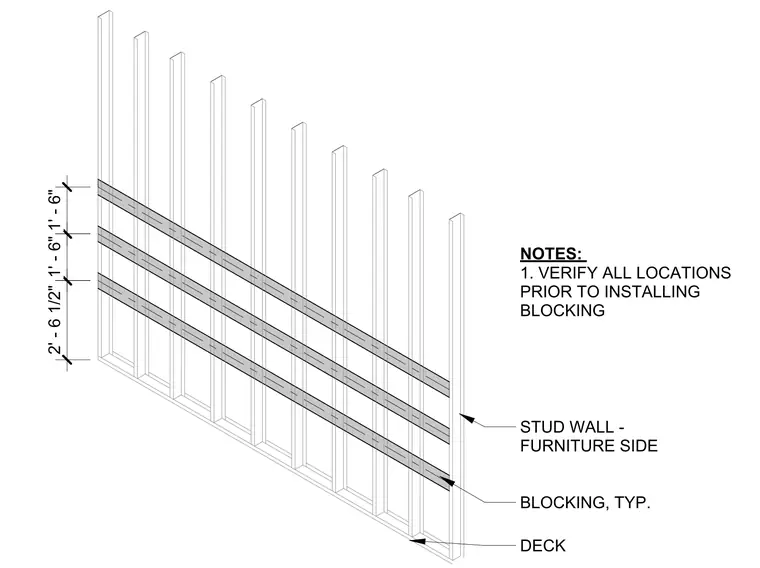

Horizontal wood blocking is installed between vertical studs within a wood-framed wall assembly to provide backing for furniture. Three rows of blocking are spaced at specific vertical intervals, with the lowest row positioned two feet six and one-half inches above the deck. The subsequent rows are spaced at one-foot intervals. All blocking locations must be verified on-site prior to installation to ensure alignment with furniture requirements.
