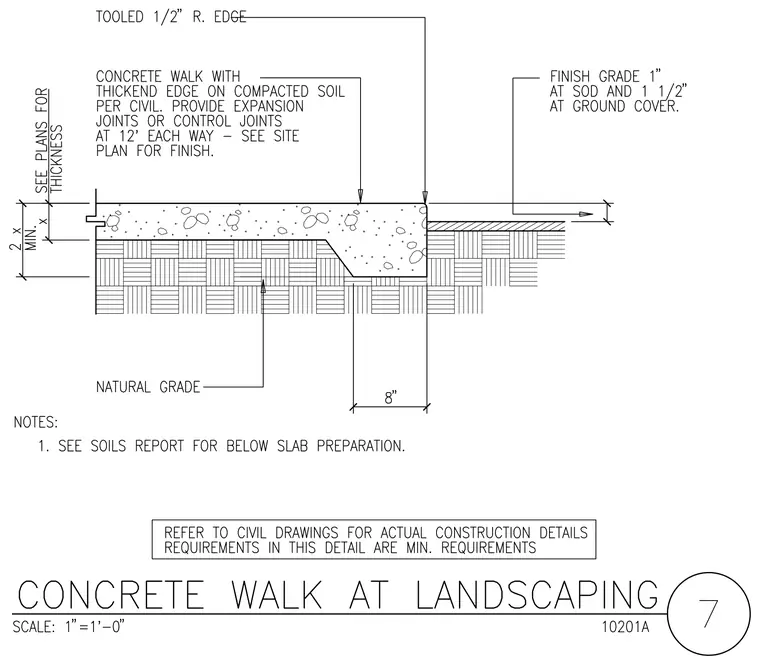

A concrete walk with a thickened edge bears on compacted soil over natural grade, featuring a tooled 1/2-inch radius edge. Expansion joints or control joints are spaced at 12 feet each way per the site plan, with slab thickness determined by plans using a minimum dimension of two times x. The adjacent finish grade is set 1 inch below the walk at sod and 1-1/2 inches at ground cover. Below slab preparation follows the soils report.
