This assembly consists of six-inch sixteen-gauge minimum metal studs spaced at sixteen inches on center extending to the underside of the deck with three-and-a-half-inch insulation installed between them. The work area side features five-eighths-inch abuse-resistant gypsum board up to eight feet above finished floor, transitioning to standard five-eighths-inch gypsum board continuing to the underside of the deck. The opposite side has continuous five-eighths-inch gypsum board running from the floor to the underside of the deck. Both sides are sealed to resist the passage of smoke, achieving an STC rating of 52.

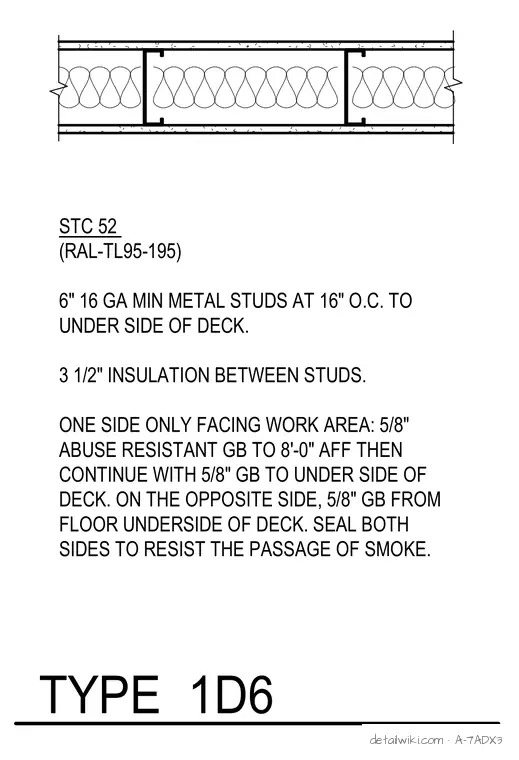

STC 52 (RAL-TL95-195) 6" 16 GA MIN METAL STUDS AT 16" O.C. TO UNDER SIDE OF DECK. 3 1/2" INSULATION BETWEEN STUDS. ONE SIDE ONLY FACING WORK AREA: 5/8" ABUSE RESISTANT GB TO 8'-0" AFF THEN CONTINUE WITH 5/8" GB TO UNDER SIDE OF DECK. ON THE OPPOSITE SIDE, 5/8" GB FROM FLOOR UNDERSIDE OF DECK. SEAL BOTH SIDES TO RESIST THE PASSAGE OF SMOKE. TYPE 1D6
