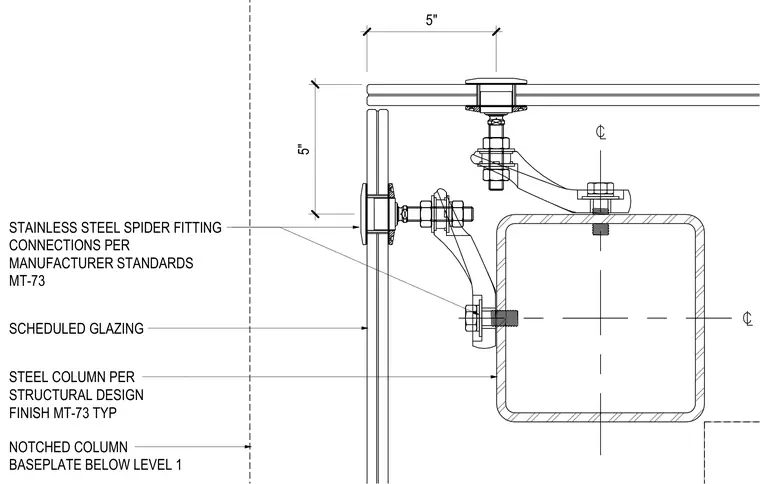

Stainless steel spider fitting connections per manufacturer standards MT-73 secure scheduled glazing panels to a structural steel column sized per structural design with finish MT-73 typical. The assembly anchors the glass facade back to the structural framing using bolted spider arms attached to the steel column web and flanges.
5" 5" STAINLESS STEEL SPIDER FITTING CONNECTIONS PER MANUFACTURER STANDARDS MT-73 SCHEDULED GLAZING STEEL COLUMN PER STRUCTURAL DESIGN FINISH MT-73 TYP NOTCHED COLUMN BASEPLATE BELOW LEVEL 1
