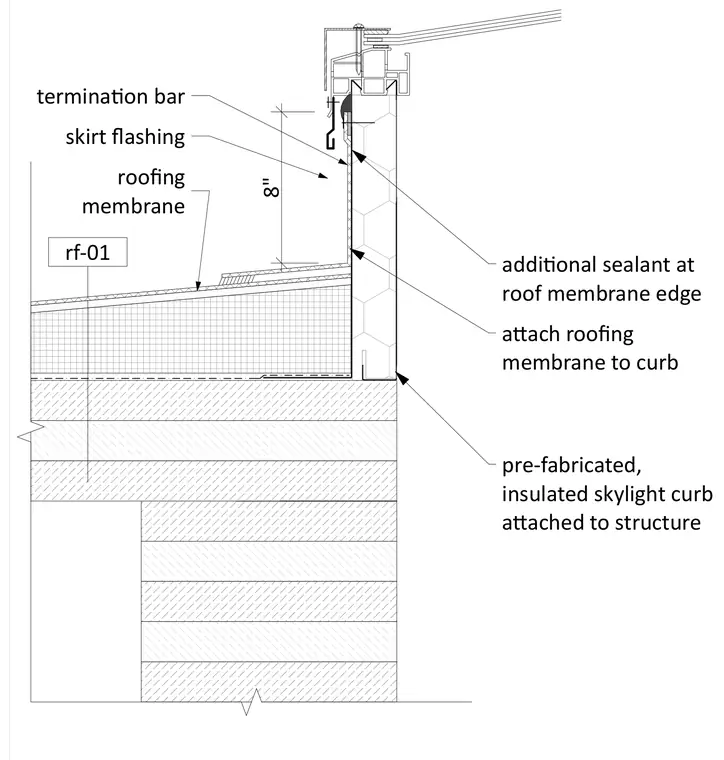

An eight-inch prefabricated, insulated skylight curb attaches directly to the roof structure. The roofing membrane extends up the curb and secures in place with additional sealant at the membrane edge. A termination bar secures the skirt flashing along the upper portion of the curb assembly.
8" pre-fabricated, insulated skylight curb a Ʃached to structure a Ʃach ro ofing membrane to curb addi Ɵonal sealant at roof membrane edge rf-01 roofing membrane termina Ɵon bar skirt flashing
