A trash enclosure gate frame is secured to a concrete tilt-up panel via three steel hinges welded on each side to a continuous 4 1/2-inch by 4 1/2-inch by 1/2-inch steel angle embed. Number 4 reinforcing bars tie into the continuous vertical number 4 rebar at each hinge point. The gate frame consists of a 3-inch by 3-inch by 1/4-inch steel angle welded to the hinges. An 18-gauge, 1 1/2-inch deep galvanized steel decking is welded to the steel frame and reinforced with a 1 1/2-inch by 1 1/2-inch by 1/4-inch steel angle cross brace. All metal is painted to match the enclosure per specifications unless otherwise noted on elevations.

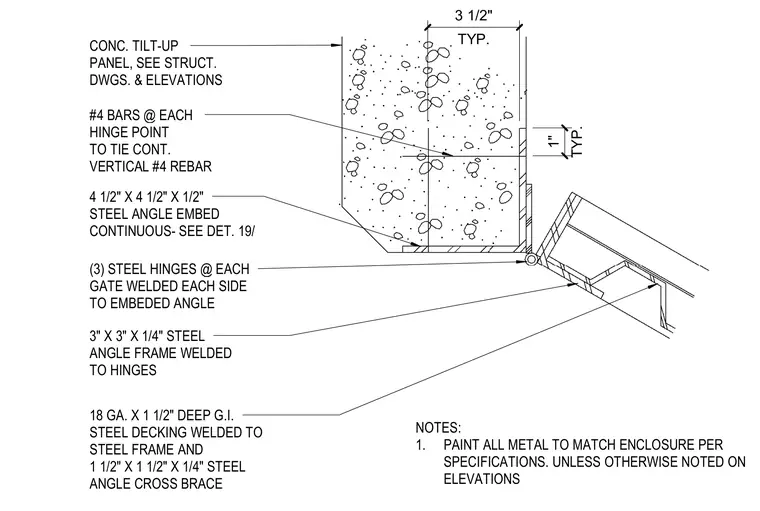

TYP. 3 1/2" TYP. 1" CONC. TILT-UP PANEL, SEE STRUCT. DWGS. & ELEVATIONS #4 BARS @ EACH HINGE POINT TO TIE CONT. VERTICAL #4 REBAR 4 1/2" X 4 1/2" X 1/2" STEEL ANGLE EMBED CONTINUOUS- SEE DET. 19/ (3) STEEL HINGES @ EACH GATE WELDED EACH SIDE TO EMBEDED ANGLE 3" X 3" X 1/4" STEEL ANGLE FRAME WELDED TO HINGES 18 GA. X 1 1/2" DEEP G.I. STEEL DECKING WELDED TO STEEL FRAME AND 1 1/2" X 1 1/2" X 1/4" STEEL ANGLE CROSS BRACE NOTES: 1. PAINT ALL METAL TO MATCH ENCLOSURE PER SPECIFICATIONS. UNLESS OTHERWISE NOTED ON ELEVATIONS
