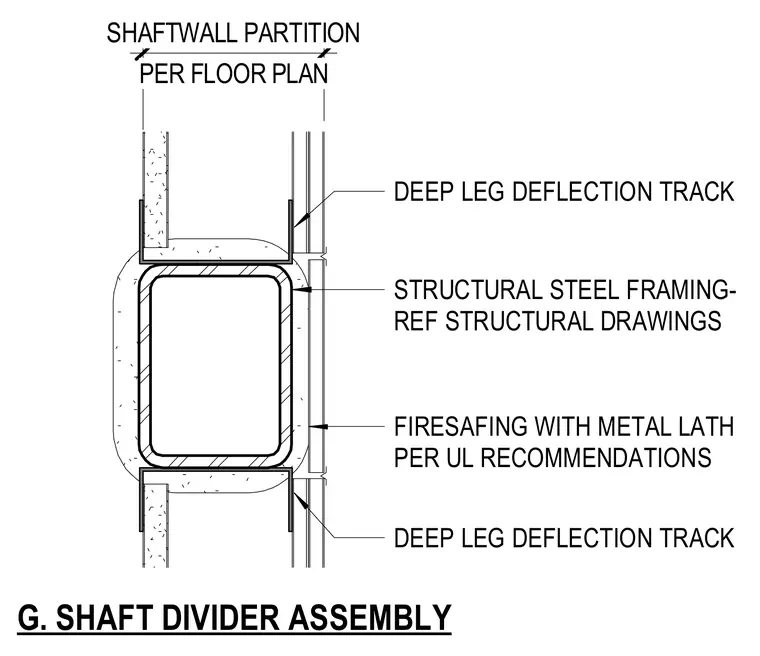

The assembly features a central structural steel framing member surrounded by shaftwall partitions per the floor plan. Deep leg deflection tracks are positioned at the top and bottom of the structural steel member to accommodate movement. Firesafing insulation wrapped with metal lath is applied around the structural steel per Underwriters Laboratories recommendations.
DEEP LEG DEFLECTION TRACK FIRESAFING WITH METAL LATH PER UL RECOMMENDATIONS DEEP LEG DEFLECTION TRACK G. SHAFT DIVIDER ASSEMBLY PER FLOOR PLAN SHAFTWALL PARTITION STRUCTURAL STEEL FRAMING- REF STRUCTURAL DRAWINGS
