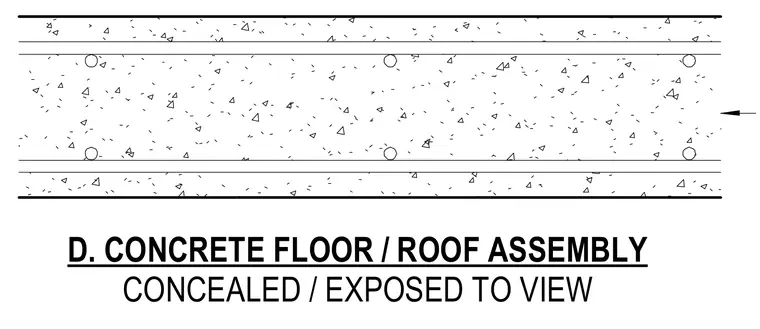

A solid concrete slab configured for conditions concealed or exposed to view contains longitudinal and transverse reinforcing bars along with embedded circular conduits or inserts. The structural layer provides continuous support and a uniform finish suitable for various construction conditions.
D. CONCRETE FLOOR / ROOF ASSEMBLY CONCEALED / EXPOSED TO VIEW
