A one-half inch thick continuous steel plate secures a laminated glass railing to the face of a stair stringer. The stair stringer consists of a structural steel member supporting a concrete over steel deck floor system with tile flooring at the landing. A stainless steel handrail is mounted to the glass railing at a height of three feet zero and one-eighth inches above the finished concrete. The underside of the assembly is finished with two and one-half inch metal studs and gypsum board.

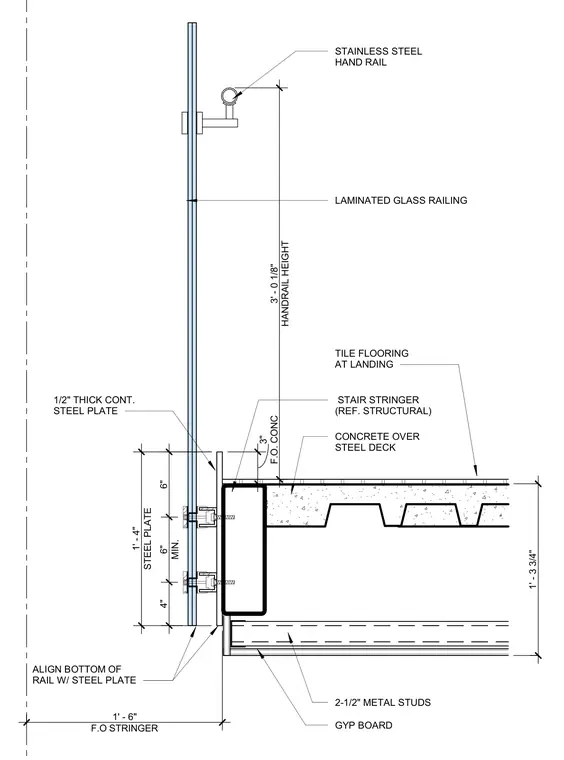

GYP BOARD 2-1/2" METAL STUDS CONCRETE OVER STEEL DECK TILE FLOORING AT LANDING LAMINATED GLASS RAILING 1/2" THICK CONT. STEEL PLATE STAINLESS STEEL HAND RAIL ALIGN BOTTOM OF RAIL W/ STEEL PLATE STAIR STRINGER (REF. STRUCTURAL) HANDRAIL HEIGHT 3' - 0 1/8" F.O. CONC 3" STEEL PLATE 1' - 4" 1' - 3 3/4" 6" MIN. 6" 4" F.O STRINGER 1' - 6"
