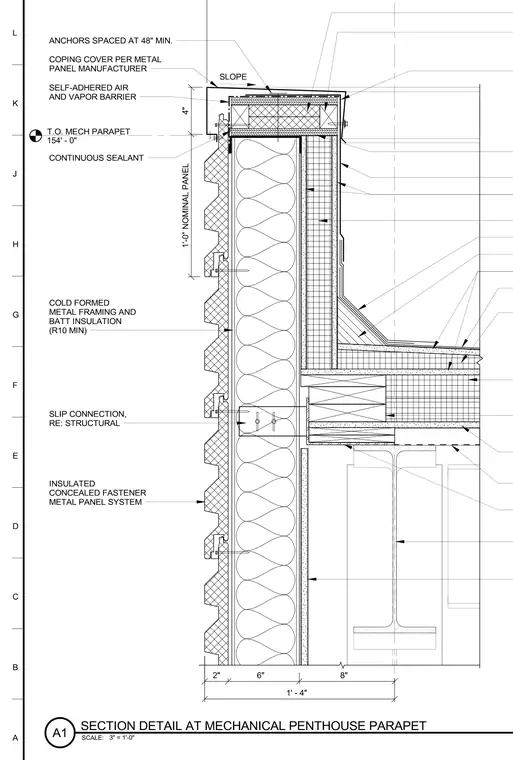

Cold-formed metal framing with batt insulation of R10 minimum supports an insulated concealed fastener metal panel system in a mechanical penthouse parapet assembly. A coping cover per the metal panel manufacturer caps the parapet over a self-adhered air and vapor barrier with anchors spaced at forty-eight inches minimum and continuous sealant. A slip connection interfaces with the structural framing below the parapet. A one-foot nominal panel zone and overall wall thickness spacing are indicated by dimensions.
