A wood door panel with a wood veneer finish matches the adjacent wall panels and features a beveled edge of one-eighth inch over two inches. The assembly incorporates Norton Rixson pivot hardware mounted within the three-quarter-inch plywood panel with veneer. The partition framing is detailed per schedule, finished with painted wood trim, maintaining a three-eighths-inch clearance at the jamb and a one-quarter-inch clearance at the door panel.

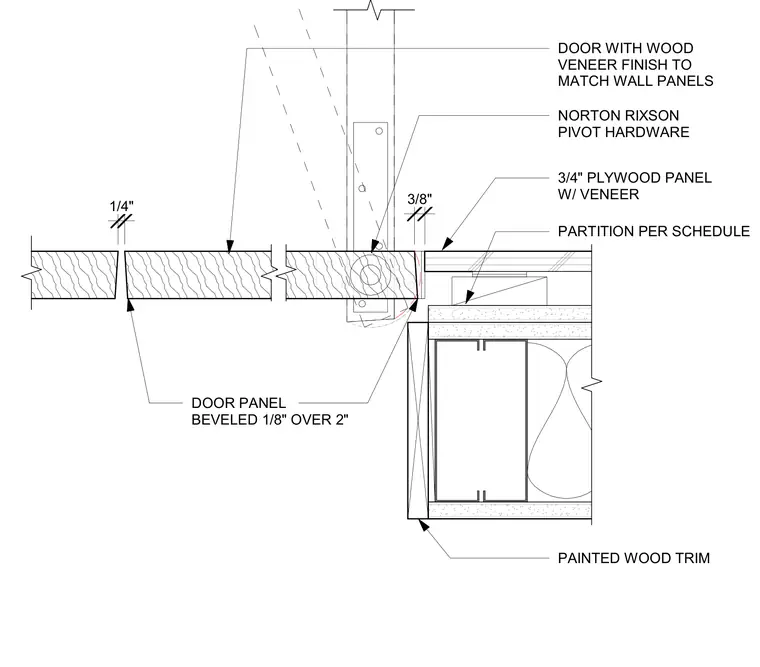

DOOR WITH WOOD VENEER FINISH TO MATCH WALL PANELS NORTON RIXSON PIVOT HARDWARE PAINTED WOOD TRIM 3/4" PLYWOOD PANEL W/ VENEER PARTITION PER SCHEDULE DOOR PANEL BEVELED 1/8" OVER 2" 3/8" 1/4"
