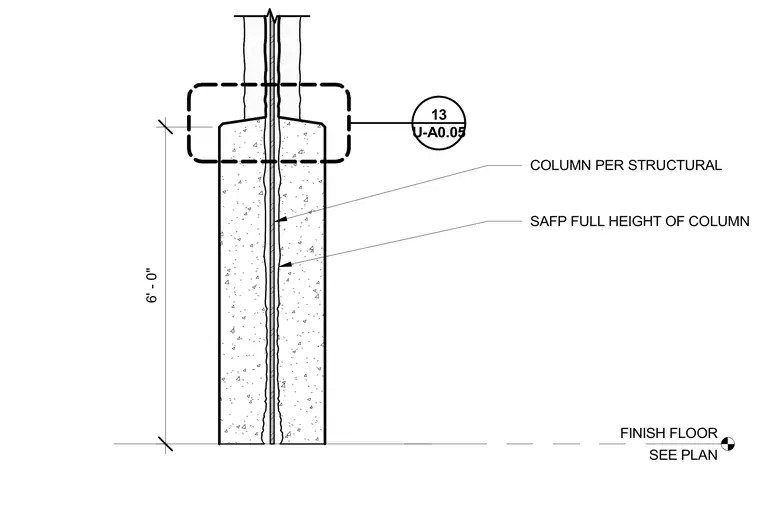

Spray-applied fireproofing (SAFP) is applied across the full height of the structural column starting from the finish floor. The protective material coats the column profile up to a height of six feet per structural requirements. A finish floor reference line indicates the starting elevation for the fireproofing application.
U-A0.05 13 COLUMN PER STRUCTURAL SAFP FULL HEIGHT OF COLUMN 6' - 0" FINISH FLOOR SEE PLAN
